Description
Product Overview

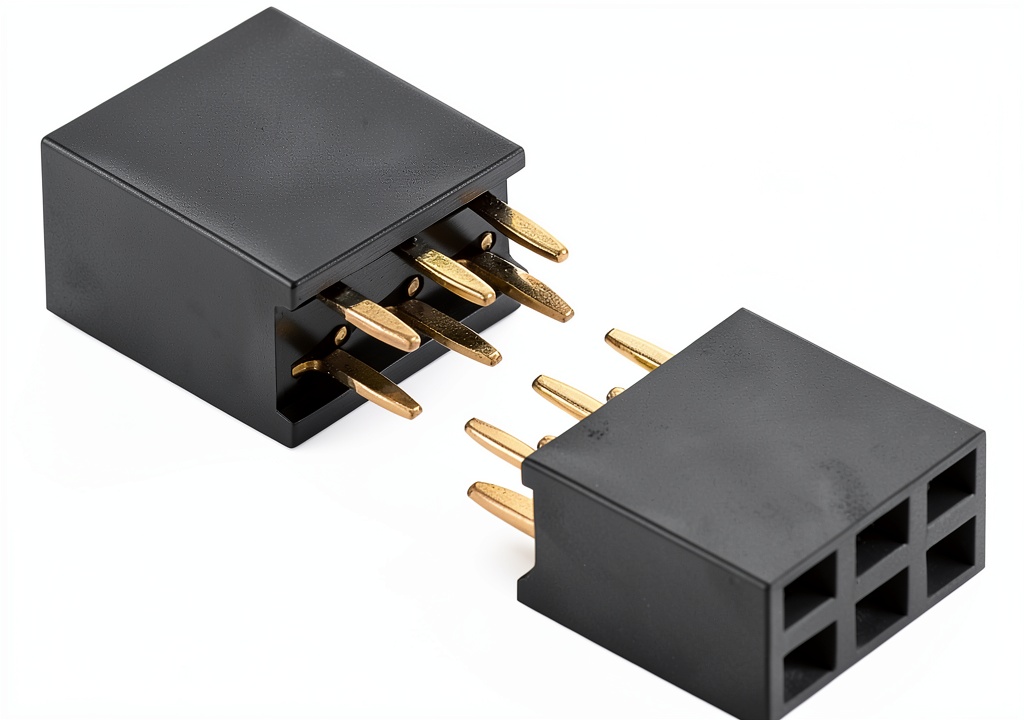

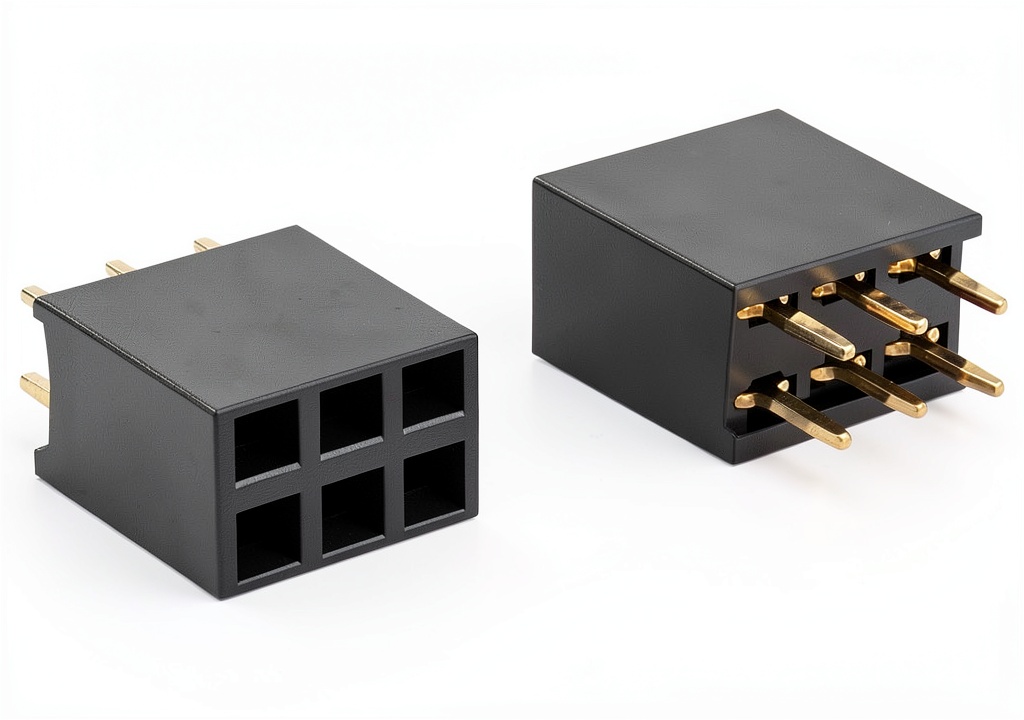

The uxcell 2.54mm pin header is a precision‑engineered connector designed for PCB mounting. Featuring a 2.54 mm pitch, six contacts, and a three‑pole configuration, it combines a robust metal frame with a high‑impact plastic housing. The black finish provides a professional look while the pin type ensures secure, solder‑free connections for a wide range of electronic projects.
Usage
This header is perfect for hobbyist kits, prototype boards, and industrial control panels where reliable signal routing is essential. Use it to connect sensors, LEDs, microcontrollers, or communication modules on standard 2.54 mm spaced PCBs.
Why Choose Us
uxcell delivers consistent quality through rigorous testing and strict manufacturing standards. Each header meets industry tolerances for pitch and contact resistance, ensuring low signal loss and long‑term durability. Our commitment to material integrity means the plastic resists cracking, while the metal contacts maintain conductivity even under repeated insertions.
Key Features
- 2.54 mm pitch for universal PCB compatibility
- Six contacts arranged in three poles for versatile wiring
- Durable metal frame with high‑impact black plastic housing
- Pin type connector for easy, solder‑free installation
- Compact dimensions (2.76 x 1.97 x 1.18 in) and lightweight (0.882 oz)
FAQ
What PCB thickness can this header accommodate?
The header is rated for standard 1.0 mm to 1.6 mm PCB thicknesses, providing a secure fit across most hobby and industrial boards.
Is the header compatible with both through‑hole and surface‑mount techniques?
It is designed primarily for through‑hole mounting, but can be used with selective soldering methods for surface‑mount applications when needed.
How many insertions can the contacts tolerate?
Each metal contact is tested for at least 500 insertion cycles without loss of conductivity, ensuring reliable reuse.
Can I use this header in high‑temperature environments?
The plastic housing is rated up to 105 °C, making it suitable for most operating conditions in industrial settings.
What is included in the package?

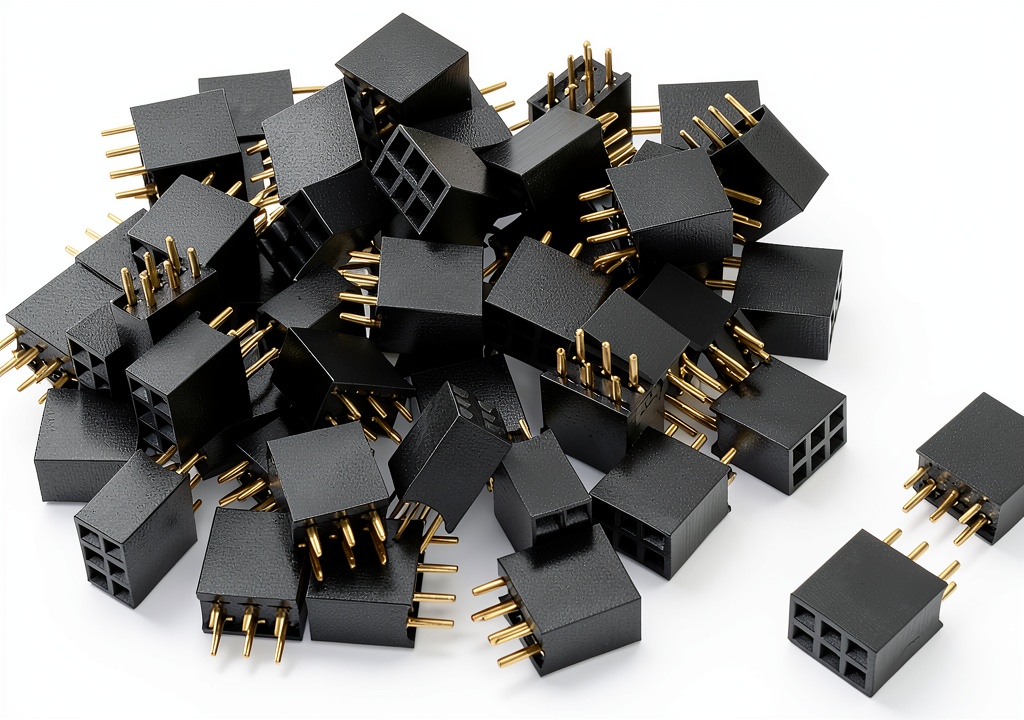

The package contains 50 pieces of the 2‑row, 3‑pin female pin header, ready for immediate deployment in bulk projects.
